Surface Read Point

5min

About

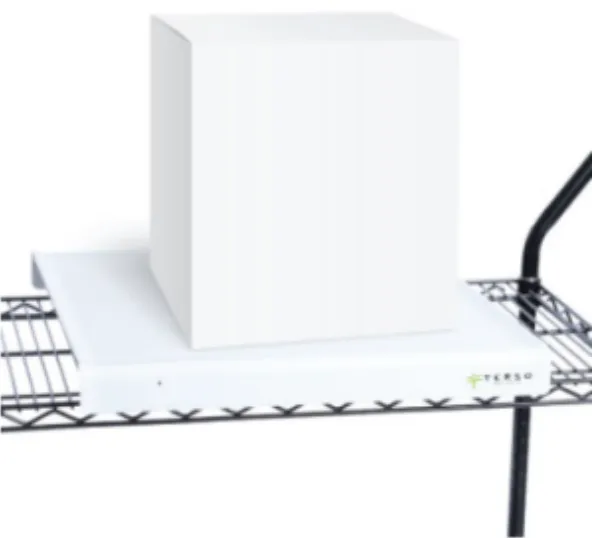

RFID surface read points are used to track inventory and transactions. Its sleek, rugged form factor and ease of install allow it to be used in a wide variety of environments where a RFID read point is desired. Common applications include tracking two-bin kanban systems for consumable inventory, or as a check-in/check-out station. To learn more, visit https://www.tersosolutions.com/products/surface-read-point/.
Model: TS082
﻿
Commands
Name
Supported
﻿Update Firmware﻿﻿
Yes
﻿Get All Passes﻿﻿
No
﻿Add or Remove Passes﻿﻿
No
﻿Get All RFID Tags﻿﻿
Yes
﻿Restart a Device﻿﻿
Yes
﻿Lock a Device﻿﻿
No
﻿Unlock a Device's Door﻿﻿
No
﻿Get a Device's Configuration Parameters﻿﻿
Yes
﻿Set a Device's Configuration Parameters﻿﻿
Yes
ConfigParameters
Name
Description
Data Type
Min
Max
Default
AntennaTxPower
The dB transmit power of all of the antennas.
Int
15
23
23
AutoUpdate
Firmware auto update enable.
Bool
0
1
0
CaptureTime
Time in seconds before a tag that enters the field is reported.
Int
1
120
5
CommandPollInterval
The number of minutes between polling for device commands in Jetstream.
Int
0
600
60
CommsReboot
Number of minutes after the system loses communication that it will automatically reboot.
Int
10
1440
230
CommsReconnectInterval
Time in seconds to wait before attempting to communicate with Jetstream if there were any communication problems.
Int
1
300
10
CommsTimeout
Time in seconds to wait for a reply from Jetstream after sending an event or command response.
Int
1
300
60
Continuous
Set to true for continuous real-time scanning. Set to false to poll the tray periodically for tags.
Bool
0
1
1
DNS
The DNS to be used in a static LAN environment. When set to '0.0.0.0', the DHCP assigned DNS server is used instead.
IP Address
0.0.0.0
255.255.255.255
0.0.0.0
DwellTime
Time in milliseconds that is spent on each antenna during continuous scanning.
Int
50
5000
200
Gateway
The gateway address to be used in a static LAN environment. When set to '0.0.0.0', the DHCP assigned Gateway address is used instead.
IP Address
0.0.0.0
255.255.255.255
0.0.0.0
HeartbeatEventInterval
The number of minutes between sending a HeartbeatEvent. A setting of 0 will disable HeartbeatEvents.
Int
0
600
60
InactivityInterval
Time in seconds communications will wait before re-establishing a connection if there is no activity.
Int
0
3600
300
IP
The IP address to be used in a static LAN environment. When set to '0.0.0.0', the DHCP assigned IP address is used instead.
IP Address
0.0.0.0
255.255.255.255
0.0.0.0
JetstreamDeviceUrl
The URL to which the tray sends Jetstream messages.
String
-
-
﻿http://us-device.tersosolutions.com/﻿
JetstreamWebsocketAppEndpoint
The Jetstream resource used to connect for WebSocket communications. Using '#' will disable WebSocket communications.
String
-
-
/dwsliveconnection.ashx
LogEntryLevel
The verbosity of the logs sent by the tray
Off
Error
Warning
Information
Verbose
String
-
-
Error
LogFileLevel
The verbosity of the logs saved locally on the tray
Off
Error
Warning
Information
Verbose
Trace
Debug
String
-
-
Debug
ObjectEventHour
The hour to perform the daily system scan as well as other system checks. A setting of -1 will disable ObjectEvents.
Int
-1
23
0
ObjectEventScanCount
The number of times to scan during a GetEPCListCommand or during the daily system scan.
Int
1
100
2
ObjectEventScanDelay
Number of seconds the tray should wait between scans.
Int
1
60
1
ObjectEventScanTime
The time in seconds for each scan during a GetEPCListCommand or during the daily system scan.
Int
1
300
5
ReaderLogEntryOnFailure
Generate a LogEntryEvent when communications to the internal RFID reader fails.
Bool
0
1
0
ReaderNumAntennas
The number of antennas the tray is using.
Int
1
4
4
RemoveEvent
Sets whether an aggregate even "remove" is sent when a tag leave the field of scanning.
Bool
0
1
0
SearchMode
Mode of scanner. Set to 1 for dual target mode to be used by continuous scanning. Set to 1 for dual target or 2 for single target when continuous is set to false for polling.
Int
1
2
1
SecureSocket
Use secure communications over HTTPS for the tray.
Bool
0
1
1
Subnet
The subnet address to be used in a static LAN environment. When set to '0.0.0.0', the DHCP assigned subnet is used instead.
IP Address
0.0.0.0
255.255.255.255
0.0.0.0
VersionsFileUrl
Location of file listing current versions of firmware. Used to configure auto firmware update.
String
-
-
﻿http://firmware.tersosolutions.com/versions.json﻿
LogEntryEvents
The list below are some common, potential LogEntryEvents a tray may send in. However, not all possible LogEntryEvents are listed in this table. The LogEntryLevel in use determines which LogEntryEvents are sent to Jetstream.
Name
Description
LowFlashMemory
LowFlashMemory occurs when the tray has less than 25% flash memory.
LowMemory
LowMemory occurs when the tray has less than 25% memory. This event will be sent every hour until the device reboots. Reboot occurs automatically if memory drops to 10%.
NewFirmwareDownloadError
NewFirmwareDownloadError occurs when a request to upgrade firmware fails.
ReadException
ReadException occurs when there is an issue performing an RFID scan.
Startup
Startup occurs whenever the tray is started up.
SensorReadingEvents
The Tray does not generate any SensorReadingEvents.

Name	Supported
Update Firmware	Yes
Get All Passes	No
Add or Remove Passes	No
Get All RFID Tags	Yes
Restart a Device	Yes
Lock a Device	No
Unlock a Device's Door	No
Get a Device's Configuration Parameters	Yes
Set a Device's Configuration Parameters	Yes

Name	Description	Data Type	Min	Max	Default
AntennaTxPower	The dB transmit power of all of the antennas.	Int	15	23	23
AutoUpdate	Firmware auto update enable.	Bool	0	1	0
CaptureTime	Time in seconds before a tag that enters the field is reported.	Int	1	120	5
CommandPollInterval	The number of minutes between polling for device commands in Jetstream.	Int	0	600	60
CommsReboot	Number of minutes after the system loses communication that it will automatically reboot.	Int	10	1440	230
CommsReconnectInterval	Time in seconds to wait before attempting to communicate with Jetstream if there were any communication problems.	Int	1	300	10
CommsTimeout	Time in seconds to wait for a reply from Jetstream after sending an event or command response.	Int	1	300	60
Continuous	Set to true for continuous real-time scanning. Set to false to poll the tray periodically for tags.	Bool	0	1	1
DNS	The DNS to be used in a static LAN environment. When set to '0.0.0.0', the DHCP assigned DNS server is used instead.	IP Address	0.0.0.0	255.255.255.255	0.0.0.0
DwellTime	Time in milliseconds that is spent on each antenna during continuous scanning.	Int	50	5000	200
Gateway	The gateway address to be used in a static LAN environment. When set to '0.0.0.0', the DHCP assigned Gateway address is used instead.	IP Address	0.0.0.0	255.255.255.255	0.0.0.0
HeartbeatEventInterval	The number of minutes between sending a HeartbeatEvent. A setting of 0 will disable HeartbeatEvents.	Int	0	600	60
InactivityInterval	Time in seconds communications will wait before re-establishing a connection if there is no activity.	Int	0	3600	300
IP	The IP address to be used in a static LAN environment. When set to '0.0.0.0', the DHCP assigned IP address is used instead.	IP Address	0.0.0.0	255.255.255.255	0.0.0.0
JetstreamDeviceUrl	The URL to which the tray sends Jetstream messages.	String	-	-	http://us-device.tersosolutions.com/
JetstreamWebsocketAppEndpoint	The Jetstream resource used to connect for WebSocket communications. Using '#' will disable WebSocket communications.	String	-	-	/dwsliveconnection.ashx
LogEntryLevel	The verbosity of the logs sent by the tray Off Error Warning Information Verbose	String	-	-	Error
LogFileLevel	The verbosity of the logs saved locally on the tray Off Error Warning Information Verbose Trace Debug	String	-	-	Debug
ObjectEventHour	The hour to perform the daily system scan as well as other system checks. A setting of -1 will disable ObjectEvents.	Int	-1	23	0
ObjectEventScanCount	The number of times to scan during a GetEPCListCommand or during the daily system scan.	Int	1	100	2
ObjectEventScanDelay	Number of seconds the tray should wait between scans.	Int	1	60	1
ObjectEventScanTime	The time in seconds for each scan during a GetEPCListCommand or during the daily system scan.	Int	1	300	5
ReaderLogEntryOnFailure	Generate a LogEntryEvent when communications to the internal RFID reader fails.	Bool	0	1	0
ReaderNumAntennas	The number of antennas the tray is using.	Int	1	4	4
RemoveEvent	Sets whether an aggregate even "remove" is sent when a tag leave the field of scanning.	Bool	0	1	0
SearchMode	Mode of scanner. Set to 1 for dual target mode to be used by continuous scanning. Set to 1 for dual target or 2 for single target when continuous is set to false for polling.	Int	1	2	1
SecureSocket	Use secure communications over HTTPS for the tray.	Bool	0	1	1
Subnet	The subnet address to be used in a static LAN environment. When set to '0.0.0.0', the DHCP assigned subnet is used instead.	IP Address	0.0.0.0	255.255.255.255	0.0.0.0
VersionsFileUrl	Location of file listing current versions of firmware. Used to configure auto firmware update.	String	-	-	http://firmware.tersosolutions.com/versions.json

Name	Description
LowFlashMemory	LowFlashMemory occurs when the tray has less than 25% flash memory.
LowMemory	LowMemory occurs when the tray has less than 25% memory. This event will be sent every hour until the device reboots. Reboot occurs automatically if memory drops to 10%.
NewFirmwareDownloadError	NewFirmwareDownloadError occurs when a request to upgrade firmware fails.
ReadException	ReadException occurs when there is an issue performing an RFID scan.
Startup	Startup occurs whenever the tray is started up.
