Kanban Read Points
Devices used with the Kanban Inventory Management feature are called Kanban Read Points. Much like standard Terso Devices, Kanban Read Points come in a wide variety of shapes, sizes, and feature sets and have the ability to report the presence and movement of RFID-tagged items. The main difference between Kanban Read Points and standard Terso devices is the workflow of RFID-tagged items. For standard devices, an item is considered to be "In Stock" if it is being read by a device. On the other hand, when a Kanban Read Point reads an RFID tag, that tag is then considered to be "Out of Stock". See Kanban Inventory Management for more information on the feature.
To learn more about the characteristics and features of specific device and read points, please visit tersosolutions.com.

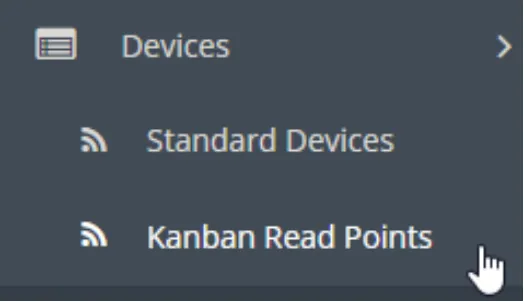

Kanban Read Points are viewed and managed on the Kanban Read Points page, available from the side menu under Devices.
Users with the "Device and Location Management" role will be able to see all read points. Users without this role will only see the read points that are at locations assigned to them in their user record.
To view a Kanban Read Point's details, click the name of the read point. The details page includes the following information for that read point:
- Read Point Name* - The unique name of the read point.
- Read Point Serial Number* - The unique designated serial number of the read point.
- Device Definition* - The read point's model, hardware region, and major firmware version for Terso device and read points. This information is necessary for Stratosphere to know how to communicate with the read point.
- Region* - The general region of the world where the read point is installed. This value cannot be edited. To change a region, delete and re-add the read point.
- Location* - The Stratosphere location where this read point is located.
- Count of Bins to Restock - The number of kanban bins currently being read by the read point.
* = Required
Adding Kanban Read Points requires the "Device and Location Management" role to be granted in your user record. Contact your system administrator to add this capability.

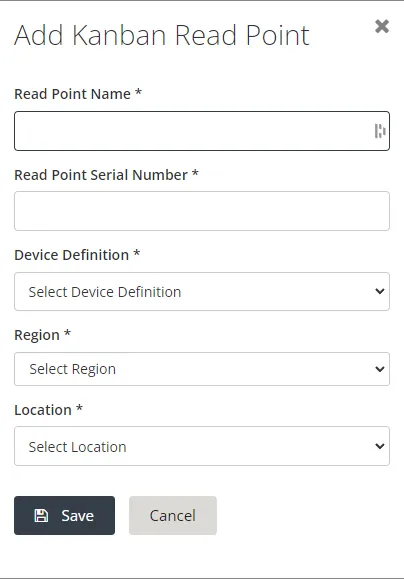

To add a read point:
- Press "Add Read Point" in the top left of the Kanban Read Point Management page.
- Enter a Kanban Read Point Name. The name must be universally unique. If the selected device name is not unique, an error will display upon saving. The name can contain numbers, letters, and the _ character. No spaces or other special characters are allowed.
- Enter the Read Point Serial Number (DSN). This will be labeled on the Kanban Read Point.
- Select a Device Definition. The Device Definition should match the TS0XX model number labeled on the Kanban Read Point. If there are multiple, select the one with your country abbreviation. Finally, select the Device Definition with the highest listed Firmware (FW) version number. It is recommended that you always select the Device Definition with the highest number available. The proper Device Definition for your device can always be provided by Terso Support.
- Select a Region. Select the region that is closest to where the Kanban Read Point will be located. Options include US, EU, AP, and USGOV. USGOV should only be used if you have been explicitly instructed to use this region.
- Select a Location, from a list of all Stratosphere locations in your organization. This is the physical location where the read point is located.
- Click Save Changes to finish adding the Kanban Read Point. The read point will now appear in the Kanban Read Points table. Once it is powered and connected to the internet, it will now begin reporting its data to Stratosphere.
Editing Kanban Read Points requires the "Device and Location Management" Role to be granted in your user record. Contact your system administrator to add this capability.
All Kanban Read Point fields can be edited at any time, with the exception of Region. There are two options for editing Kanban Read Points.
- On the Kanban Read Points page, open the quick action menu for the Kanban Read Point you wish to edit and select "Edit".
- In the Edit Kanban Read Point window that opens, make any desired changes.
- Click "Save Changes" to save the edited record. Clicking "Cancel" or the X in the top right of the window will remove any edits you just made but had not yet saved.
- On the Kanban Read Points page, click the Kanban Read Point name link
- In the Kanban Read Point Details page, make any desired changes.
- Click "Save Changes" to save the edited record. To cancel your edits, simply leave the Kanban Read Point Details page without saving.
Deleting Kanban Read Points requires the "Device and Location Management" Role to be granted in your user record. Contact your system administrator to add this capability.
If a read point currently contains any bins, deleting the read point will cause those items to show as "Restocked" in the Transaction Report. There are two options for deleting a read point.
- On the Kanban Read Points page, open the quick action menu for the read point you wish to delete and select "Delete."
- In the "Delete Kanban Read Point" confirmation window that appears, click "Delete" to confirm the deletion of the read point. This cannot be undone. Clicking "Cancel" or the X in the top right of the window will not delete the read point.
- On the Kanban Read Points page, click the read point name link for the read point you wish to delete.
- On the Kanban Read Point Details page that opens, scroll to the bottom of the page and click "Delete".
- In the "Delete Kanban Read Point" confirmation window that appears, click "Delete" to confirm the deletion of the read point. This cannot be undone. Clicking "Cancel" or the X in the top right of the window will not delete the read point.
