Directional Read Point

5min

About

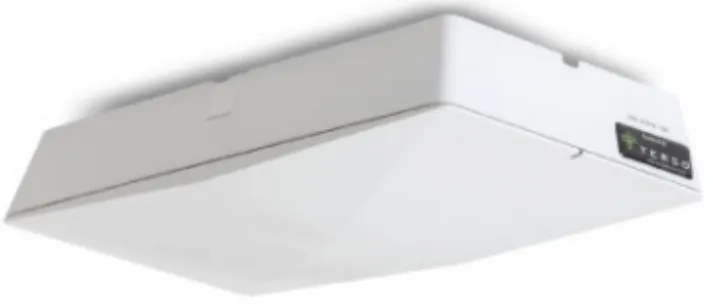

Directional portals are powerful RFID sensor that can be mounted almost anywhere to track RFID tags passing through the sensors range. The most common configurations include doorway-mounted portals that track the movement of tags in and out of the room, and ceiling or wall-mounted portals that track the sightings of tags in a particular location. To learn more, visit https://www.tersosolutions.com/products/rfid-directional-read-point/.
Model: TS087
﻿
Commands
Name
Supported
﻿Update Firmware﻿﻿
Yes
﻿Get All Passes﻿﻿
No
﻿Add or Remove Passes﻿﻿
No
﻿Get All RFID Tags﻿﻿
No
﻿Restart a Device﻿﻿
Yes
﻿Lock a Device﻿﻿
No
﻿Unlock a Device's Door﻿﻿
No
﻿Get a Device's Configuration Parameters﻿﻿
Yes
﻿Set a Device's Configuration Parameters﻿﻿
Yes
ConfigParameters
Name
Description
Data Type
Min
Max
Default
Name
Description
Data Type
Min
Max
Default
AgeInterval
Time in seconds after a tag leaves the field that is reported as out of field.
Int
1
60
3
AntennaTxPower
The dB transmit power of all of the antennas.
Int
15
32
23
AutoUpdate
Firmware auto update enable.
Bool
0
1
0
CaptureTime
Time in seconds before a tag that enters the field is reported.
Int
3
60
5
CommandPollInterval
The number of minutes between polling for device commands in Jetstream.
Int
0
600
60
CommsReboot
Number of minutes after the system loses communication that it will automatically reboot.
Int
10
1440
230
CommsReconnectInterval
Time in seconds to wait before attempting to communicate with Jetstream if there were any communication problems.
Int
1
300
10
CommsTimeout
Time in seconds to wait for a reply from Jetstream after sending an event or command response.
Int
1
300
60
DirectionFlag
Used to reverse the direction that an "add" or "remove" is reported in aggregate event. Not applicable when PointMode is "true".
Bool
0
1
0
FieldOfView
Sets how scanner sets its range
Narrow
Wide
String
-
-
Narrow
HeartbeatEventInterval
The number of minutes between sending a HeartbeatEvent.
Int
0
600
60
InactivityInterval
Time in seconds communications will wait before re-establishing a connection if there is no activity.
Int
70
3600
300
JetstreamDeviceUrl
The URL to which the directional portal sends Jetstream messages.
String
-
-
us-device.jetstreamrfid.com
JetstreamWebsocketAppEndpoint
The Jetstream resource used to connect for WebSocket communications. Using '#' will disable WebSocket communications.
String
-
-
/dwsliveconnection.ashx
LingerTime
Time in seconds that a tag can "linger" under scanner before it is reported. Used to help with excessive reporting when a tag is directly under scanner and is picked up going back and forth. Not applicable when PointMode is "true".
Int
0
300
30
LogEntryLevel
The verbosity of the logs sent by the reader
Off
Error
Warning
Information
Verbose
String
-
-
Error
LogFileLevel
The verbosity of the logs saved locally on the reader
Off
Error
Warning
Information
Verbose
Trace
Debug
String
-
-
Debug
ObjectEventHour
The hour to perform the daily system scan as well as other system checks. A value of -1 disables this feature.
Int
-1
23
0
PointMode
When set to true, the device will send events when tags are simply in field of view. When set to false the device will send directional information.
Bool
0
1
0
ReaderLogEntryOnFailure
Generate a LogEntryEvent when communications to the internal RFID reader fails.
Bool
0
1
0
ReaderMode
Sets the mode that scanner searches for tags
Performance
Sensitivity
Not applicable when PointMode is "true".
String
-
-
Performance
RemoveEvent
Sets whether an aggregate event "remove" is sent when a tag leaves the field of scanning. Not applicable when PointMode is "false".
Bool
0
1
0
SameSectorLogEntry
If set to true, the device will report that a tag exited the field in the same direction as it entered. Not applicable when PointMode is "true".
Bool
0
1
0
SecureSocket
Use secure communications over HTTPS for the reader.
Bool
0
1
1
TagPopulation
Estimate of number of tags in the field of view at one time. Not applicable when PointMode is "true".
Int
1
1000
20
VersionsFileUrl
Location of file listing current versions of firmware. Used to configure auto firmware update.
String
-
-
http://firmware.tersosolutions.com/versions.json
LogEntryEvents
The list below are some common, potential LogEntryEvents a directional portal may send in. However, not all possible LogEntryEvents are listed in this table. The LogEntryLevel in use determines which LogEntryEvents are sent to Jetstream.
Name
Description
LowFlashMemory
LowFlashMemory occurs when the directional portal has less than 25% flash memory.
LowMemory
LowMemory occurs when the directional portal has less than 25% memory. This event will be sent every hour until the device reboots. Reboot occurs automatically if memory drops to 10%.
NewFirmwareDownloadError
NewFirmwareDownloadError occurs when a request to upgrade firmware fails.
ReadException
ReadException occurs when there is an issue performing an RFID scan.
Startup
Startup occurs whenever the directional portal is started up.
SensorReadingEvents
The Directional Portal does not generate any SensorReadingEvents.
