Mobile Case

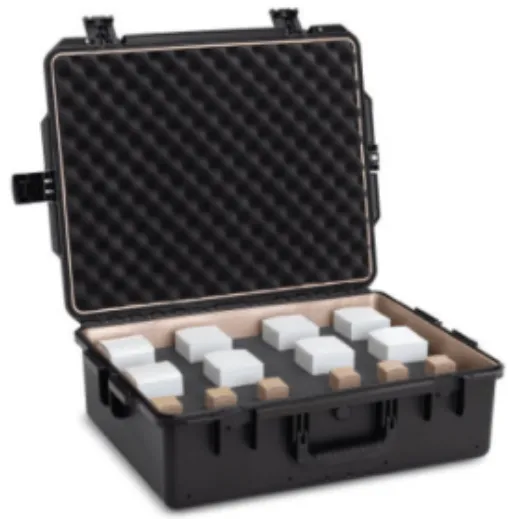

RFID Mobile Cases are Jetstream enabled devices used to transport, protect, and track field or mobile inventory. These devices not only support most Jetstream commands and events, but extend them by adding mobile features such as Geolocation through Location Based Services (LBS). To learn more, visit https://www.tersosolutions.com/products/rfid-mobile-case/.
Model: TS080
Name | Supported |
|---|---|
Yes | |
No | |
No | |
No | |
No | |
No | |
No | |
Yes | |
Yes |
Name | Description | Data Type | Min | Max | Default |
|---|---|---|---|---|---|
AggregateEventScanCount | Number of times the case should scan after an end user closes the lid. | Int | 1 | 100 | 2 |
AggregateEventScanDelay | Number of seconds the case should wait between scans after an end user closes the lid. | Int | 1 | 60 | 1 |
AggregateEventScanTime | The time of each individual scan in seconds after an end user closes the lid. | Int | 1 | 300 | 2 |
AntennaTxPower | The dB transmit power of all antennas. | Int | 10 | 23 | 23 |
BatteryCritical | The battery percentage threshold to flag if the battery is at a critical charge level. In this state, the case will not perform RFID scans. It may also not be able to communicate depending on charge level. | Int | 2 | 20 | 10 |
BatteryLed | Enable the LED to indicate battery level. | Bool | 0 | 1 | 0 |
BatteryLow | The battery percentage threshold to flag if the battery is at a low charge level. The case will continue to operate normally by scanning and communicating results. | Int | 5 | 50 | 20 |
CommandPollInterval | The number of minutes between polling for device commands in Jetstream. | Int | 0 | 600 | 60 |
CommsReconnectInterval | Time in seconds to wait before attempting to communicate with Jetstream if there were any communication problems. | Int | 0 | 60 | 10 |
CommsTimeout | Time in seconds to wait for a reply from Jetstream after sending an event or command response. | Int | 0 | 60 | 10 |
ConnectRetries | Number of times to retry connecting to the cellular network. | Int | 1 | 3 | 5 |
DNS | The DNS to be used in a static LAN environment. When set to '0.0.0.0', the DHCP assigned DNS server is used instead. | IP Address | 0.0.0.0 | 255.255.255.255 | 0.0.0.0 |
Gateway | The gateway address to be used in a static LAN environment. When set to '0.0.0.0', the DHCP assigned Gateway address is used instead. | IP Address | 0.0.0.0 | 255.255.255.255 | 0.0.0.0 |
HeartbeatEventInterval | The number of minutes between sending a HeartbeatEvent. | Int | 0 | 600 | 0 |
InactivityInterval | Time in minutes communications will wait before re-establishing a connection if there is no activity. | Int | 0 | 3600 | 300 |
IP | The IP address to be used in a static LAN environment. When set to '0.0.0.0', the DHCP assigned IP address is used instead. | IP Address | 0.0.0.0 | 255.255.255.255 | 0.0.0.0 |
JetstreamDeviceUrl | The URL to which the case sends Jetstream messages. | String | - | - | |
JetstreamWebsocketAppEndpoint | The Jetstream resource used to connect for WebSocket communications. Using '#' will disable WebSocket communications. | String | - | - | /dwsliveconnection.ashx |
LidClosedShutdownTime | The number of seconds to wait after the lid is closed before automatically shutting down to conserve power. | Int | 1 | 600 | 30 |
LidDebounceTime | The number of seconds to wait after the lid is closed before scan begins. | Int | 1 | 300 | 3 |
LidOpenTimeLimit | The number of seconds to wait while the lid remains open before automatically shutting down to conserve power. | Int | 1 | 600 | 300 |
LocationService | Use location based services for the case. The Geolocation of the case will be sent in a SensorReadingEvent. | Bool | 0 | 1 | 1 |
LogEntryLevel | The verbosity of the logs sent by the case
| String | Off | Trace | Error |
LogFileLevel | The verbosity of the logs saved locally on the case
| String | Off | Debug | Off |
ObjectEventHour | The hour to perform the daily system scan as well as other system checks. | Int | -1 | 23 | 0 |
ObjectEventOnly | When true, all scans are reported as ObjectEvent. Otherwise, lid open/close report as AggregateEvents. | Bool | 0 | 1 | 0 |
ObjectEventScanCount | The number of times to scan during a GetEPCListCommand or during the daily system scan. | Int | 1 | 100 | 2 |
ObjectEventScanDelay | Number of times the case should wait between scans after an end user closes the lid. | Int | 1 | 60 | 1 |
ObjectEventScanTime | The time in seconds for each scan during a GetEPCListCommand or during the daily system scan. | Int | 1 | 300 | 2 |
OperationLed | Enable the LED to indicate operation state. | Bool | 0 | 1 | 0 |
PingInterval | Time in seconds between client initiated pings when using WebSockets. A setting of 0 disables client pings. | Int | 0 | 3600 | 0 |
ReaderLogEntryOnFailure | Generate a LogEntryEvent when communications to the internal RFID reader fails. | Bool | 0 | 1 | 1 |
RegionCode | The region determines the RFID frequency of operation. | String | - | - | FCC |
SecureSocket | Use secure communications over HTTPS for the case. | Bool | 0 | 1 | 1 |
SensorALogEntryEventHighTemp | High temperature threshold in Celsius for probe A to send a LogEntryEvent. | Int | -100 | 100 | 100 |
SensorALogEntryEventLowTemp | Low temperature threshold in Celsius for probe A to send a LogEntryEvent. | Int | -100 | 100 | -100 |
SensorReadingEventInterval | The number of seconds between sending a SensorReadingEvent. | Int | 0 | 600 | 60 |
Subnet | The subnet address to be used in a static LAN environment. When set to '0.0.0.0', the DHCP assigned subnet is used instead. | IP Address | 0.0.0.0 | 255.255.255.255 | 0.0.0.0 |
The list below are some common, potential LogEntryEvents an enclosure may send in. However, not all possible LogEntryEvents are listed in this table. The LogEntryLevel in use determines which LogEntryEvents are sent to Jetstream.
Name | Description |
|---|---|
CriticalBattery | CriticalBattery occurs whenever the percent of battery charge is below BatteryCritical. The battery percentage will also be reported. |
LowBattery | LowBattery occurs whenever the percent of battery charge is below BatteryLow but above BatteryCritical. The battery percentage will also be reported. |
LowFlashMemory | LowFlashMemory occurs when the mobile case has less than 25% flash memory. |
LowMemory | LowMemory occurs when the mobile case has less than 25% memory. This event will be sent every hour until the device reboots. Reboot occurs automatically if memory drops to 10%. |
NewFirmwareDownloadError | NewFirmwareDownloadError occurs when a request to upgrade firmware fails because the case is not able to download the new firmware. |
ReadException | ReadException occurs when there is an issue performing an RF read. |
ScanInterruptionAlarm | ScanInterruptionAlarm occurs when someone interrupts a scan by opening the lid. |
Shutdown | Shutdown occurs when the case is signaled to shutdown. |
Startup | Startup occurs whenever a case is started up. |
Temperature | Temperature occurs when a temperature threshold set by SensorALogEntryEventHighTemp or SensorALogEntryEventLowTemp has been reached. |
TemperatureRestore | TemperatureRestore occurs when an enclosure has gone back into normal temperature range. |
WakeReason | Occurs whenever the case boots up. The message contains the reason why the case booted. |
Geolocation for the case (Latitude, Logitude, and Range) is reported as part of a SensorReadingEvent.
Name | Description |
|---|---|
BatteryLevel | The percent charge remaining of the battery. |
Connection | The frequency standard the device communicated through: LTE, CDMA, or GSM. |
Latitude | The Latitude where case is currently positioned in degrees. |
Longitude | The Longitude where case is currently positioned in degrees. |
Range | The measure of error from the Latitude/Longitude point where case is currently positioned in meters. |
SignalStrength | The cellular network signal strength where the case is currently positioned in dB. |
TemperatureA | The temperature reported on probe A in Celsius. |
