Read Point

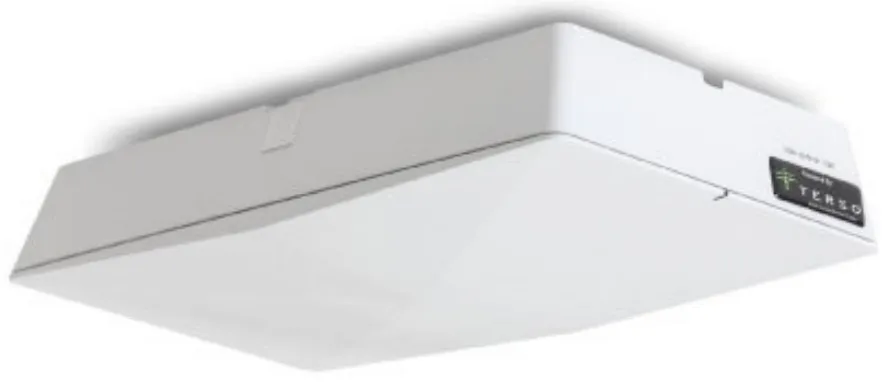

Read points are powerful RFID sensors that can be mounted almost anywhere to track RFID tags passing through the sensors range. The most common configurations include doorway-mounted portals that track the movement of tags in and out of the room, and ceiling or wall-mounted portals that track the sighting of tags in a particular location.
Model: TS090
Name | Supported |
|---|---|
Yes | |
No | |
No | |
No | |
Yes | |
No | |
No | |
Yes | |
Yes |
Name | Description | Data Type | Min | Max | Default |
|---|---|---|---|---|---|
Name | Description | Data Type | Min | Max | Default |
AntennaTxPower | The dB transmit power of all of the antennas. | Int | 15 | 32 | 23 |
AntennaRxSensitivity | The dB receive sensitivity of all of the antennas. | Int | -80 | -30 | -70 |
AutoUpdate | Firmware auto update enable. | Bool | 0 | 1 | 0 |
CaptureTime | Time in seconds before a tag that enters the field is reported. | Int | 1 | 120 | 5 |
CommandPollInterval | The number of minutes between polling for device commands in Jetstream. | Int | 0 | 600 | 60 |
CommsReboot | Number of minutes after the system loses communication that it will automatically reboot. | Int | 10 | 1440 | 230 |
CommsReconnectInterval | Time in seconds to wait before attempting to communicate with Jetstream if there were any communication problems. | Int | 1 | 300 | 10 |
CommsTimeout | Time in seconds to wait for a reply from Jetstream after sending an event or command response. | Int | 1 | 300 | 60 |
HeartbeatEventInterval | The number of minutes between sending a HeartbeatEvent. A setting of 0 will disable HeartbeatEvents. | Int | 0 | 600 | 60 |
InactivityInterval | Time in seconds communications will wait before re-establishing a connection if there is no activity. | Int | 0 | 3600 | 300 |
JetstreamDeviceUrl | The URL to which the read point sends Jetstream messages. | String | - | - | |
JetstreamWebsocketAppEndpoint | The Jetstream resource used to connect for WebSocket communications. Using '#' will disable WebSocket communications. | String | - | - | /dwsliveconnection.ashx |
LogEntryLevel | The verbosity of the logs sent by the reader
| String | - | - | Error |
LogFileLevel | The verbosity of the logs saved locally on the reader
| String | - | - | Debug |
NumAntennas | Number of antennas active for reader. | Int | 1 | 4 | 1 |
ObjectEventHour | The hour to perform the daily system scan as well as other system checks. A value of -1 disables this feature. | Int | -1 | 23 | 0 |
ReaderLogEntryOnFailure | Generate a LogEntryEvent when communications to the internal RFID reader fails. | Bool | 0 | 1 | 0 |
RemoveEvent | Sets whether an aggregate event "remove" is sent when a tag leaves the field of scanning. | Bool | 0 | 1 | 0 |
SecureSocket | Use secure communications over HTTPS for the read point. | Bool | 0 | 1 | 1 |
VersionsFileUrl | Location of file listing current versions of firmware. Used to configure auto firmware update. | String | - | - |
The list below are some common, potential LogEntryEvents a read point may send in. However, not all possible LogEntryEvents are listed in this table. The LogEntryLevel in use determines which LogEntryEvents are sent to Jetstream.
Name | Description |
|---|---|
LowFlashMemory | LowFlashMemory occurs when the read point has less than 25% flash memory. |
LowMemory | LowMemory occurs when the read point has less than 25% memory. This event will be sent every hour until the device reboots. Reboot occurs automatically if memory drops to 10%. |
NewFirmwareDownloadError | NewFirmwareDownloadError occurs when a request to upgrade firmware fails. |
ReadException | ReadException occurs when there is an issue performing an RFID scan. |
Startup | Startup occurs whenever the read point is started up. |
The Read Point does not generate any SensorReadingEvents.
