Reset Instructions

TS088 Reset Instructions

2min

Please make sure the unit has not been accessed or opened for 5 to 10 minutes when resetting. 1.) Check all cable connections

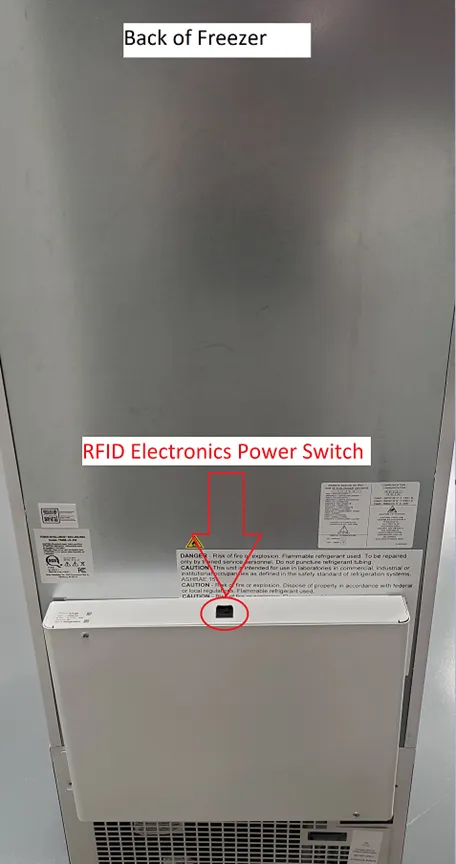

2.) Power off the RFID Electronics with the power switch on the back of the freezer. (Please make sure the unit has not been accessed or opened for 5 to 10 minutes when resetting)

Document image

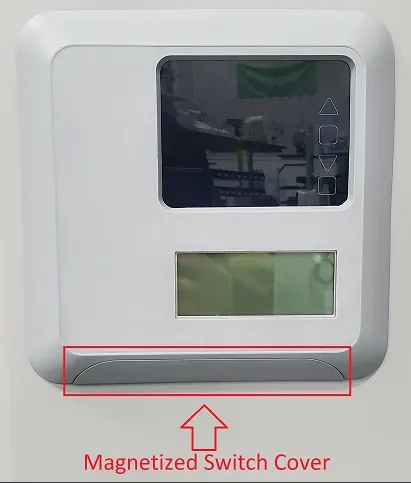

3.) Remove magnetized front switch panel (Located on the bottom of the temperature display)

Document image

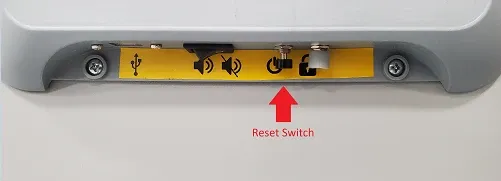

4.) Press down Reset Button for 2-3 seconds (Switch should have a Power symbol behind it). To verify the reset was successful the LCD Screen which normally says “Welcome, place pass below” should be dark.

Document image


5.) The LCD Screen which normally indicates “Welcome, Place Pass Below” will turn back on and go through a sequence of messages:

“Please Wait, System Booting” “Please Wait, System Scanning” “Welcome, Place Pass Below” 6.) Following the completion of the reset process, please allow 3-5 minutes for the device for the device to boot up before presenting a pass.

7.) Once the device has returned to “Welcome, Place Pass Below” on the screen, it should be back in working order.
