TS079 Reset Instructions

Please make sure the unit has not been accessed or opened for 5 to 10 minutes when resetting.

1.) Check all cable connections

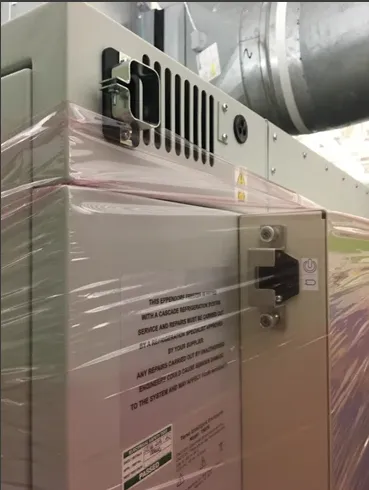

2.) Power off the freezer with the main power switch on the right side on the back of the enclosure. The unit might audibly alarm, this is normal.

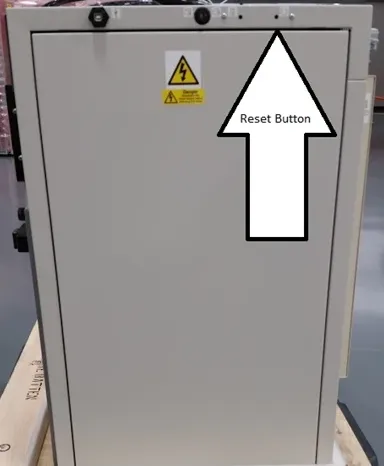

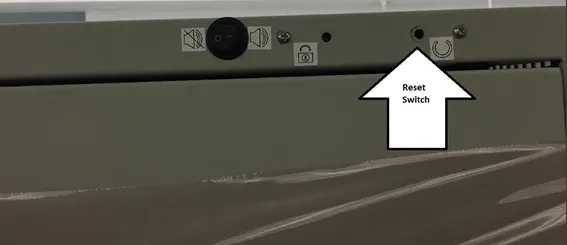

3.) Press in the Reset button (Pin hole next to horseshoe sticker on the right of the enclosure) for about 5 seconds. There are two pictures of this button below.



Restart Instructions:

1.) Power on the freezer with the main power switch (used in step 1) in the back. 2.) The LCD Screen which normally indicates “Welcome, Place Pass Below” will turn back on and go through a sequence of messages:

“Please Wait, System Booting” “Please Wait, System Scanning” “Welcome, Place Pass Below” 3.) Following the completion of the reset process, please allow 3-5 minutes for the device for the device to boot up before presenting a pass.

4.) Once the device has returned to “Welcome, Place Pass Below” on the screen, it should be back in working order.
