TS078 Reset Instructions

Please make sure the door on the unit has not been accessed or opened for 5 to 10 minutes when resetting

1.) Check all cable connections

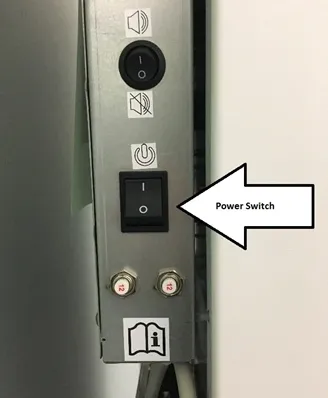

2.) Power off the device with the power switch on the back side of the Freezer.

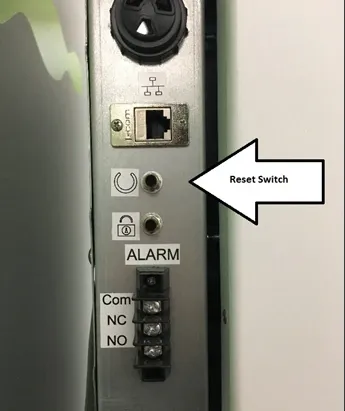

3.) Press in the Reset button (Pressure switch on the side of the back) for about 5 seconds.

4.) Power on the Freezer with the power switch in the back. 5.) The LCD Screen which normally indicates “Welcome, Place Pass Below” will turn back on and go through a sequence of messages:

“Please Wait, System Booting” “Please Wait, System Scanning” “Welcome, Place Pass Below” 6.) Following the completion of the reset process, please allow 3-5 minutes for the device for the device to boot up before presenting a pass.

7.) Once the device has returned to “Welcome, Place Pass Below” on the screen, it should be back in working order.
